Adopt DC pulse width modulation technology to realize the stepless and uniform speed control of the main shaft and saw blade, and the maximum speed can reach 10,000 revolutions per minute.
Technical Parameters
Features:

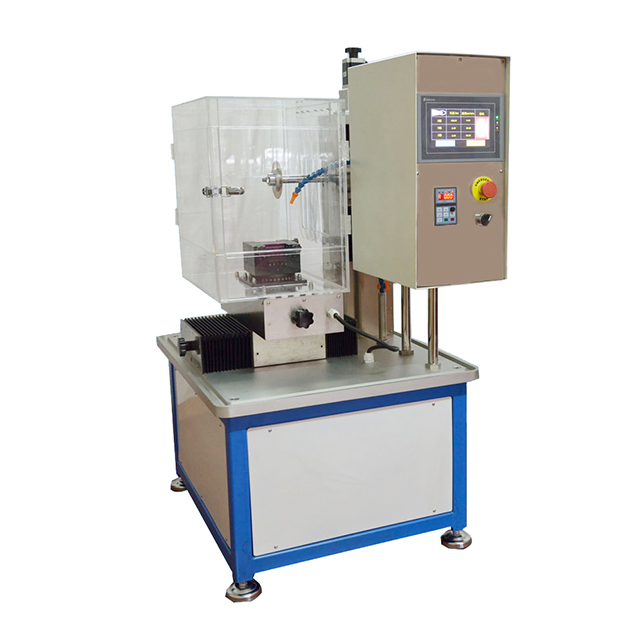

1. PLC controls the stepping motor to drive the X-axis linear guide moving platform to realize cutting data management such as cutting length, cutting speed, and carriage return speed.
2. PLC controlled stepping motor drives the Y-axis linear guide moving platform to adjust the cutting width. The maximum cutting width can be 100 mm.
3. PLC controls the stepping motor to drive the Z-axis linear guide moving platform to position the diamond external saw blade with a diameter of 100 mm and 150 mm installed on the main shaft, and adjust the cutting depth.
4. The X-axis mobile platform is equipped with a two-dimensional fixture. The two-dimensional fixture can also be equipped with a cross fixture and a vacuum suction cup, which can realize cutting at any angle or a precise 90-degree angle.
5. Equipped with a miniature circulating pump to cool and lubricate the saw blade;
6. Adopt DC pulse width modulation technology to realize the stepless and uniform speed control of the main shaft and saw blade, and the maximum speed can reach 10,000 revolutions per minute.
7. PLC program control, can set X, Y, Z axis linkage.
8. The touch screen sets various cutting data columns, and the cutting data can be input to realize automatic continuous cutting.
9. Equipped with a circulating cooling system.
10. Equipped with a water-retaining cover device.
Technical Parameters:
| Spindle speed | 0～10000 revolutions/min (stepless speed regulation) |
| Motor power | 2.2 kilowatts |
| X axis moving speed | minimum 0.02mm/min, maximum 100mm/min |
| X-axis moving distance | 200mm (effective stroke 160mm) |
| Y-axis moving distance | 160mm (Effective stroke 120mm) |
| Z axis moving distance | 60mm (effective stroke 50mm) |
| Power source | AC 220V |
| Weight | 80 kg |
| Dimensions | 700×700×700(mm) |
