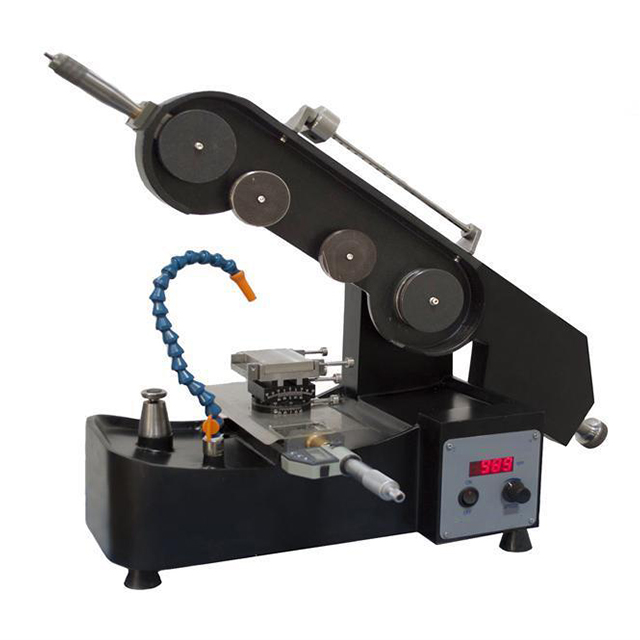

Diamond wire cutting saw KS-STX-201 with 0.3mm diamond wire

KS-STX-201 precision endless wire saw is designed to provide a very smooth cutting

for almost all kinds of materials by using either a diamond impregnated or a plain wire blade with abrasive slurry.


Technical Parameters

KS-STX-201 precision endless wire saw is designed to provide a very smooth cutting

for almost all kinds of materials by using either a diamond impregnated or a plain wire blade with abrasive slurry. It is an ideal tool suitable for cutting valuable delicate and

fragile crystals such as SrTiO3, YVO4, and GaAs etc.

Technical Parameters:

ModelKS-STX-201 diamond wire cutting saw

  Stage travel distance
Max. 50.8 mm (2")    travel length360 degree horizontal   rotating and 30 degrees tilt stage
Traveling position accuracy2'' Mechanical Micrometer   Head
Size of sample stage80 x 51 mm
Wire traveling speed0-3m/sec
Rotate speed50-900rpm
Diamond Wiretwo piece loop type diamond   wire  0.3mm Dia. Diamond coated) is   included for immediate use.
Cutting thicknessUp to 50 mm
Power SupplyAC 110~220 50/60Hz,  50W
Product dimensionWith saw closed: 81Lx 43Wx 37H   cm
  With saw fully open: 81Lx 43Wx 54H cm
Package dimension40" x 25" x 30"
Shipping Weight150 Lbs
Warranty One year limited manufacturer   warranty with lifetime support (cutting wire is not covered by the   warranty)
