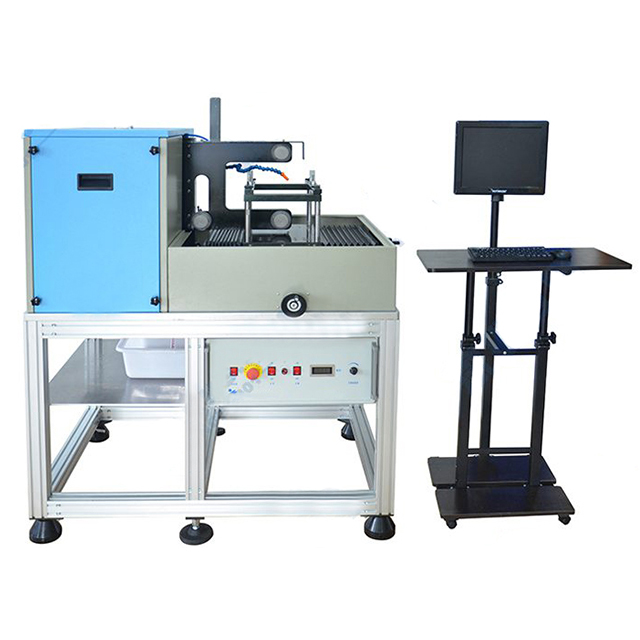

The equipment can be programmed to set the cutting shape, and then the diamond wire will follow the path set by the program to cut various shapes. This equipment effectively solves some difficult-to-process materials special-shaped cutting problems, such as ceramic materials, crystal materials, infrared optical materials
Technical Parameters
Description:
The equipment can be programmed to set the cutting shape, and then the diamond wire will follow the path set by the program to cut various shapes. This equipment effectively solves some difficult-to-process materials special-shaped cutting problems, such as ceramic materials, crystal materials, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), thermoelectric materials (such as bismuth telluride, telluride, etc.) Lead, silicon-germanium alloy, etc.), glass, rock samples, jade, PCB boards, meteorites, marine nodules, refractory materials, building materials, polymer materials, composite materials, etc. for processing tensile performance test samples. Regardless of the difference between the processed material and the diameter, as long as the appropriate feed rate is selected to control the opening angle during processing, higher efficiency and higher quality cutting can be achieved.
Technical Parameters:
| Model | KS-CS-100C |
| X-axis slide stroke | 200mm |
| Y-axis slide stroke | 300mm |
| Maximum cutting thickness | 50mm |
| The positioning accuracy of the skateboard | 0.01mm |
| Maximum linear speed | 15m/s |
| X/Y axis movement speed | 0.06-6mm/min |
| The size of the load board | 220x320mm |
| The maximum cutting size of the sample | 200x300x50mm |
| Cutting line tensioning method | pneumatic tensioning |
| Dimensions | 1170mm x 850mm x 1600mm |
| Weight | 325Kg |
