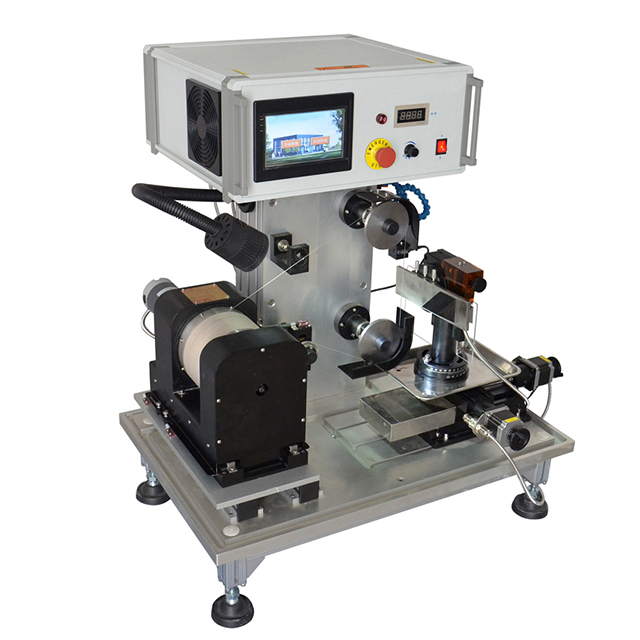

KS-CS-402 desktop diamond wire cutting machine
is a small desktop diamond wire cutting equipment developed and manufactured by
our company. It can be used for precision cutting of brittle materials
such as ceramics, crystals, glass, metals, rocks, thermoelectric materials,
infrared optical materials, composite materials, and biomedical materials.
Technical Parameters
Product Description:
KS-CS-402 desktop diamond wire cutting machine is a small
desktop diamond wire cutting equipment developed and manufactured by our
company. It can be used for precision cutting of brittle materials such as
ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared
optical materials, composite materials, and biomedical materials. The cutting
size can reach 4". KS-CS-402 desktop diamond wire cutting machine is a The
single-line reciprocating cycle continuous diamond wire cutting machine can
continuously cut the sample after setting the cutting program. During the
cutting process, the sample moves slowly to the cutting line. The sample after
cutting has high dimensional accuracy, within the range of ±10μm. The length of
the cutting line is long (80m), and the service life of one line is extended,
which greatly improves the cutting efficiency. The tension wheel adopts the
spring tension mode, the spring rigidity is strong, the tension force is large,
and the tension force remains constant during the cutting process Change,
maintain the tension of the diamond wire. KS-CS-402 desktop diamond wire
cutting machine can achieve high-efficiency, high-quality cutting, and is an
ideal equipment for laboratories and production
Product Features:
1. It is especially suitable
for cutting high-value and fragile crystals, such as ZnO, BTO, YAG, BBO, etc.
The success rate of slicing can be as high as 99%.
2. Equipped with a
two-dimensional adjustable fixture, the horizontal and vertical corner accuracy
is ±10′, which can ensure the accuracy of the cutting crystal direction.
3. Adopt 80m long diamond wire
for reciprocating cutting, and the wire speed can be adjusted between 0-2m/s.
4. Metal light and abrasive
slurry can also be used for cutting.
5. Driven by a stepping motor,
the knife feeds and cuts automatically. Cutting speed can be adjusted according
to different materials to improve cutting quality and prolong the service life
of diamond wire.
Technical Parameters:
| Product Model | KS-CS-402 |
| Power supply voltage | 220V 50Hz |
| Power Rate | <250W |
| Total length of cutting line | 100m |
| Line speed | adjustable within 0-2m/s |
| Angle precision of two-dimensional fixture | 10′ |
| X-axis travel | set The range is between 1 and 110mm. |
| Y-axis stroke | the setting range is between 0.01 and 110mm. |
| X, Y-axis indication accuracy | 0.01mm. |
| Cutting sample size | Ø100mm×100mm (max) |
