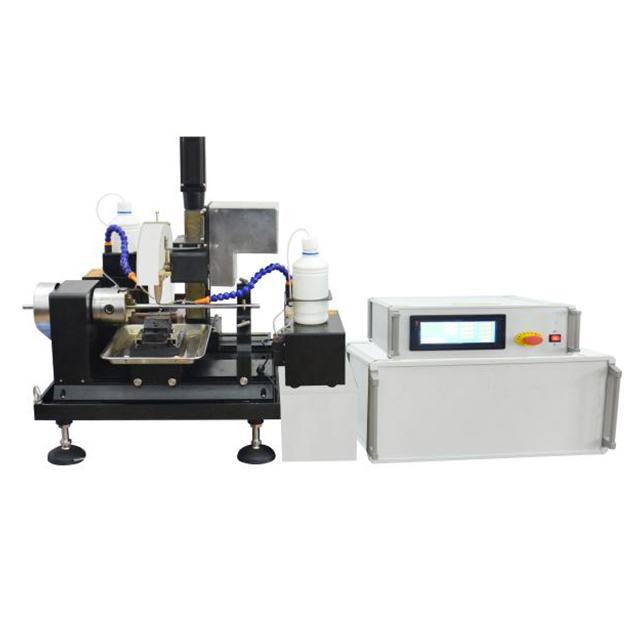

KS-CS-400TZ is a hot chamber cylindrical grinding and grooving machine, designed for grinding small ceramic or metallic rod. It can be controlled by a remote control box to set up parameters for grinding and cutting requirements.
Technical Parameters
Product Description:
KS-CS-400TZ is a hot chamber
cylindrical grinding and grooving machine, designed for grinding small
ceramic or metallic rod. It can be controlled by a remote control box to set up
parameters for grinding and cutting requirements.
Product Features:
1. The host equipment is installed in the hot chamber, which
is suitable for the hot chamber environment and manipulator operation.
2. The
equipment has the requirements of fixed-point cutting of fuel rods and
metallographic sample cutting.
3. The
machine can be controlled by a remote touch screen, and the user can set
parameters according to actual requirements. automatic cutting
Technical Parameters:
| Product Model | KS-CS-400TZ cutting saw |
| Power supply voltage | AC220V |
| Spindle speed | 100-3000rpm |
| X-axis skateboard stroke | 160mm |
| Z-axis skateboard stroke | 100mm |
| A-axis shaft | 360° |
| A-axis rotation angle and angle error | 360±0.5 ° |
| Stepping motor positioning accuracy | 0.01mm |
| Saw blade outer diameter | Φ150±10mm |
| Saw blade inner hole | Φ12.7mm |
| Fuel rod sample | Φ9.5×1000mm |
| Metallographic sample size | Φ32 ×140mm |
| Overall dimensions of the host | 510×500×635mm |
| The control box of the host | 500×400×210mm |
| The remote control box | 380×310×210mm |
| The weight of the whole machine | 39kg |
