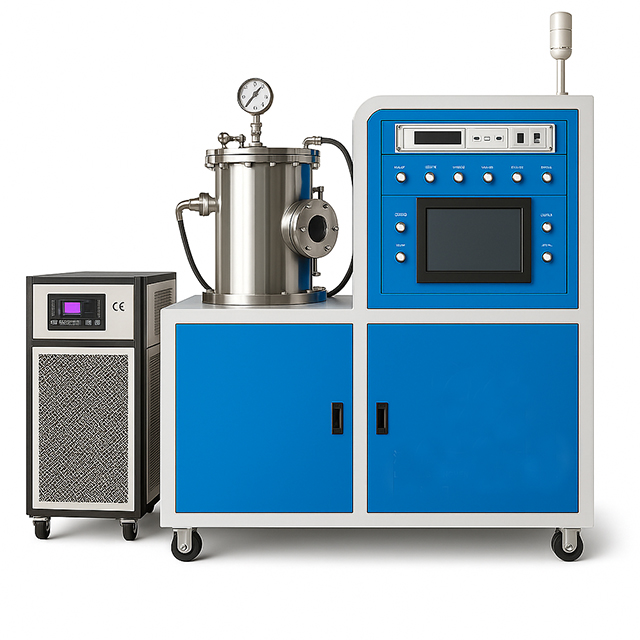

Home - Products - Crystal Growth Furnace - Czochralski process crystal growth furnace under graphite heating reach to 1600C working temperature
It is mainly used for gem crystal preparation, fluoride crystal growth, sintering, annealing and other treatments in the LED industry
Technical Parameters
Product Features:
1. Modular design, compact structure, beautiful appearance,
2. Adopt bottom electric lifting and bell type furnace body lifting, exquisite structure, convenient, smooth movement, convenient loading and unloading
3· It adopts touch screen + PLC control mode, which has a high degree of automation, intuitive operation and powerful functions.
4· Dozens of sintering processes can be pre-stored in the touch screen, edited once, and directly called and used later, saving the trouble of editing the process multiple times, avoiding input errors and burning the product.
5· Sintering temperature, vacuum, and other data can be recorded in real time, and can also be started and stopped at any time to reduce useless data, data can be queried, exported and downloaded.
6· The sintering temperature is high, and the heat element is heated with graphite, up to 1600 °C
| Model | KS-CGS-C60 |
| Total power of equipment | ≤15Kw; |
| Power supply voltage | 3-phase 380V, 50Hz |
| Maximum temperature | 1650°C heating power≤ 8Kw single-phase 220V |
| Rated temperature | room temperature ~ 1600 °C |
| Working area size | Ф60×100mm (diameter× height,) |
| Furnace body diameter Ф300Ф500mm | |
| Temperature measurement system | tungsten Lai thermocouple |
| Temperature control accuracy | ±0.1°C |
| Heating zone | Ф80×120mm |
| Crucible descent speed | slow lifting 0.1-10mm/h (servo control)Quick lifting 50-200mm/min (with manual lifting)Displacement stroke ≤150mm |
| Central shaft effective stroke/load | ≤300mm/20kg |
| Filling pressure in the furnace | ≤0.05Mpa |
