KunSheng UV Ozone Cleaners are highly published and widely used in industry, production and academics labs to UV clean semiconductor wafers, UV clean LCD surfaces during manufacturing, remove and strip photoresist, improve surface wettability
Technical Parameters

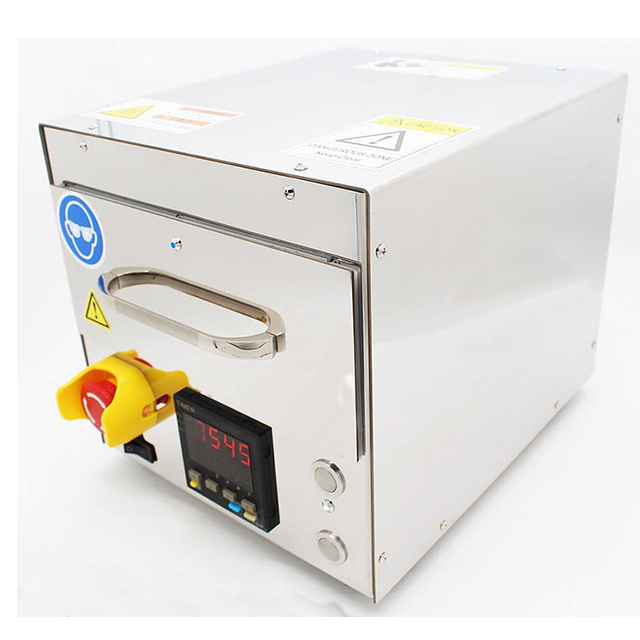

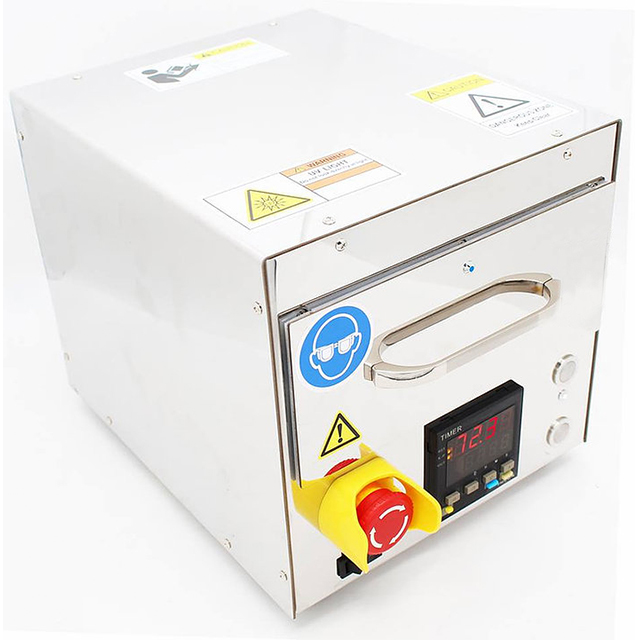

Compact tabletop UV-ozone cleaners are useful for sample preparation at space-limited lab facilities.
KunSheng UV Ozone Cleaners are highly published and widely used in industry, production and academics labs to UV clean semiconductor wafers, UV clean LCD surfaces during manufacturing, remove and strip photoresist, improve surface wettability, UV clean AFM probes / tips, UV Clean SEM & TEM samples, UV polymer activation, assembly / bonding of PDMS / glass microfluidic devices, UV clean glass and a host of other UV Ozone cleaning and oxidation applications.
KunSheng UV Ozone Cleaners have proven to be highly effective for non-acidic, dry, non-destructive atomic cleaning and removal of organic contaminants using intense 185 nm and 254 nm ultraviolet light. In the presence of oxygen, the 185 line produces Ozone and while the 254 line excites organic molecules on the surface. This combination drives the rapid destruction and decimation of organic contaminants.
| Input Power | AC 220V±10%, 50/60Hz |
| Feature | To remove a variety of contaminants from surfaces of substrates samplesUse dry process to clean surfaces with highly effective methodGenerate energy at wave line between 254nm to 185nmThere are Oxygen inlet port, Ozone removal pump, and LCD display unitSample temperature measurement featureBuzzer for indication completion of cleaningLocking feature for locking sample feeding tray to avoid opening during operation |
| UV Lamp | UV lamp power: 120W Max.Wave length: 254 nm and 185 nm Max substrate size: 150 x 150 mm ( 6"x 6") |
| Chamber & Sample Stage | Tray size: 176mm x 168mmSample feeding: slide based |
| LCD Display | Time Duration: 1 - 99 sec / min / hrSample Temperature measurement feature |
| Warranty | One-year limited warranty with lifetime support ( no warranty for Pyrex glass chamber ) |
| Application | Cleaning molecular contamination from SPTs, AFM tips, and surfacesCuring UV-adhesivesUV-photopatterning of SAM surfacesOxidizing PDMSSurface sterilizationEtch, pattern, sharpenClean MEMS devicesClean substrate surfaces such as Si, Ge, GaAs and all oxide crystal substrate |
| Consumable Parts | Replacement lamps |
