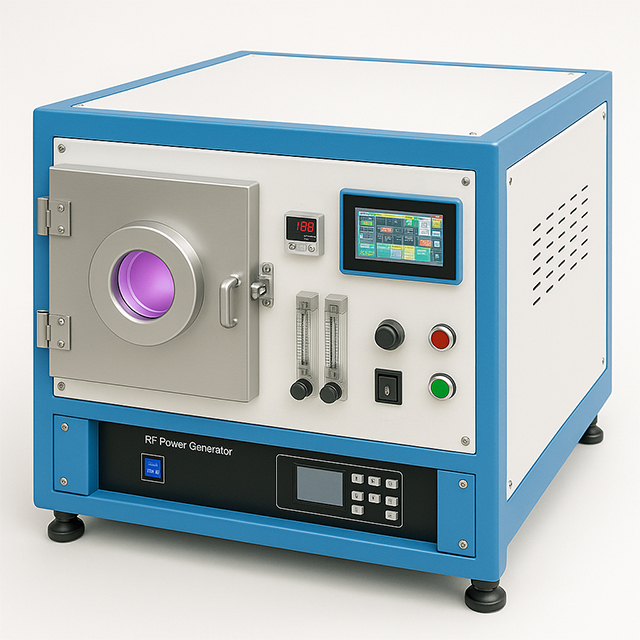

Home - Products - Cleaning Machine - 13.56Mhz 2L,5L and 10L plasma surface treatment for education research
Simple manual matching of reflections
Low power for easy operation
The cavity material is available in quartz or stainless steel
The price advantage is comprehensive
The chemical reaction has a significant effect
Technical Parameters
Model | KS-PL-2SMT | KS-PL-5SMT | KS-PL-10SMT |
Cavity material quality | 316 stainless steel plasma surface treatment/quartz | ||
Cavity size (Stainless steel) | Φ100×270Lmm | Φ150×270Lmm | 220×260×200mm L×W×H |
Cavity size(Quartz) | Φ200×320Lmm | ||
Cavity capacity | 2L | 5L | 10L |
Form factor | 560×540×410mm L×W×H | 560×540×410mm L×W×H | 650 ×550×440mm L×W×H |
Power frequency | 13.56Mhz | ||
Power supply | 0-300W (continuously adjustable) | 0-500W(continuously adjustable). | |
flowmeter | High precision 2-way float flowmeter | ||
vacuometer | Pressure gauge (quantitative value display) | ||
Control the process | Fully automatic control and manual (PLC HMI) | ||
Cleaning time | 0- 99999S adjustable | ||
Vacuum level | 1-30pa | ||
Chamber temperature | <30℃ | ||
Supply voltage | 220V | ||
vacuum pump | 2XZ-2(speed 2L/S) | 2XZ-4(speed 4L/S) |
