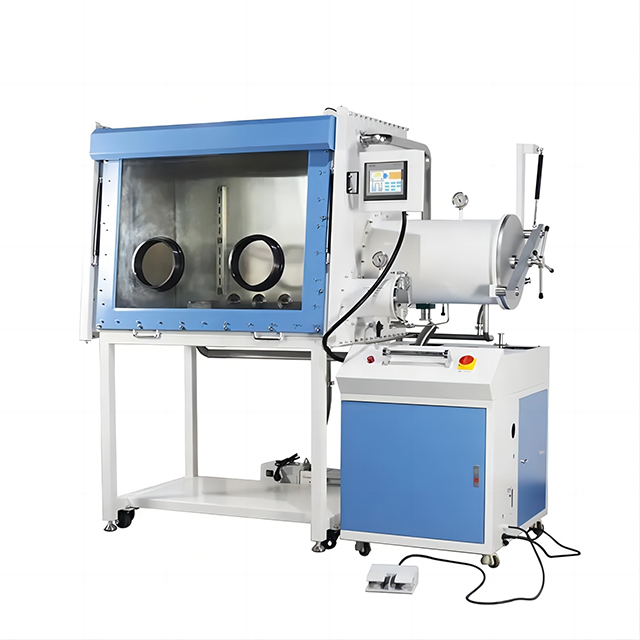

KS-VGB-3 is a stainless steel glove box designed for researches
in material science, chemisty, semiconductor, and related topics
It is widely used in preparing nano materials, Li-ion battery materials, catalysts, and metallorganics.
Technical Parameters
Products Description:
KS-VGB-3 is a stainless steel glove box designed for researches
in material science, chemisty, semiconductor, and related topics.
The purification cylinder is made of BASF R311 Copper Catalyst and
Lindy Molecular Sieve in order to achieve a low water and oxygen
concentration of lower than 1ppm, such that experiments can be
conducted in a ultra clean and highly purified gas environment.
It is integrated with vapor pressure control system, purity control system,
automatic gas purity regeneration control system, and system data
log recording. It is widely used in preparing nano materials, Li-ion battery materials, catalysts, and metallorganics.
Technical Parameters:
| Model No. | KS-VGB-3 |
| Chamber dimension | 1200*750*900,or as customized |
| Material of glove box | 304 stainless steel, thickness:3mm |
| Glove port dimension | Φ220mm, duralumin |
| Glove | North( America), glove size:8”, 0.4mm thickness, material is Butyl rubber |
| window | 8mm toughened glass with 3/8” thickness OMEGA seal ring |
| Pressure | Negative 12mbar to Positive 12mbar |
| Connection | KF40 |
| Display pallet | One layer(height as customized) |
| Transition chamber | Cylinder shape with 304 S.S, Connect with glove box, controlled by valve |
| Transition chamber size | Φ 360* 600(Length) (right size operation) |
| Pallet | 300*450mm S.S Pallet |
| Vacuum degree | ≤-0.1 MPa |
| Controller | Automatic LCD control |
| Cleaning capacity | Water/oxide <1ppm |
| Adjustable | PLC touch adjust(heating, pumping, purification,regeneration) |
| Working gas | N2 /Ar (gas cycle) |
| Circulating fan | High speed frequency conversion fan, flow speed :0-100m3/h,microprocessor control |
| Purification column | BASF deoxidize materialUOP water absorbing material |
| Purge Valve | Burkert |
| Filter | 0.3 micron aperture filter (HEPA standard) |
| Vacuum system | EDWARDS RV12 vacuum pump |
