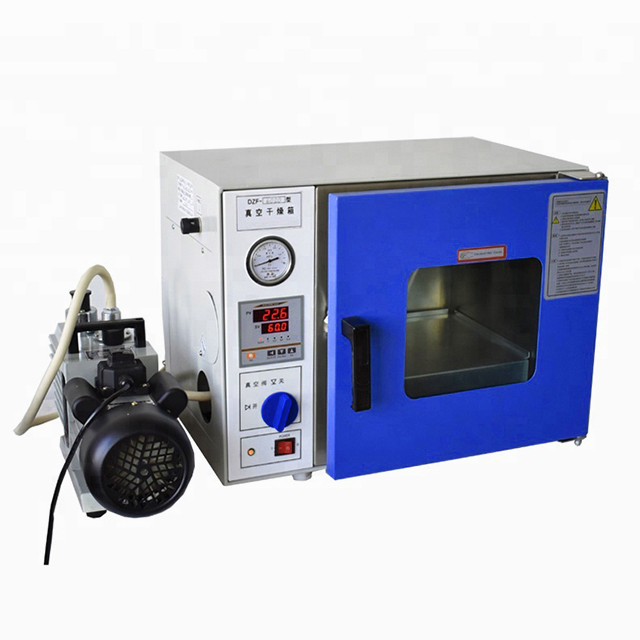

Small Lab Vacuum Drying Oven Electric Heating Chamber KS-DZF-6050

This Vacuum Drying Oven is mainly used for scientific research units, specialty universities, laboratories, industrial mining enterprises etc. and production field for materials drying and heat treatment under the vacuum state.

Inquire Now Next Product

Technical Parameters

This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core drying. Vacuum pump is optional.

The product is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’ disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.

Vacuum Lab Oven for battery material heating drying under vacuum states has advantages :

1. It can short the drying temperature process

2. Avoid heating to oxidation

3. Avoid heating air to kill living cells

4. There is no dust damage

Technical Parameters:

Model	KS-DZF-6050 Vacuum Drying Oven
Source voltage	AC 110VAC or 220V 50Hz/60Hz
Power	1400W
Warranty	One Year Limited Manufacture Warranty with Life Time Support
Temperature range	RT+10-250℃
Temperature fluctuation	±0.5℃
Vacuum degree	-0.1MPa
Volume	50L
Inner box size(LWH)	415345370mm
Dimension(LWH)	730560550mm
Temperature controller	1 High precision microcomputer temperature controller, working time can be set for 0-9999min.
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray
Box door	Toughened bulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	2pcs1 Solid stainless steel shelf, guarantee the oven temperature
