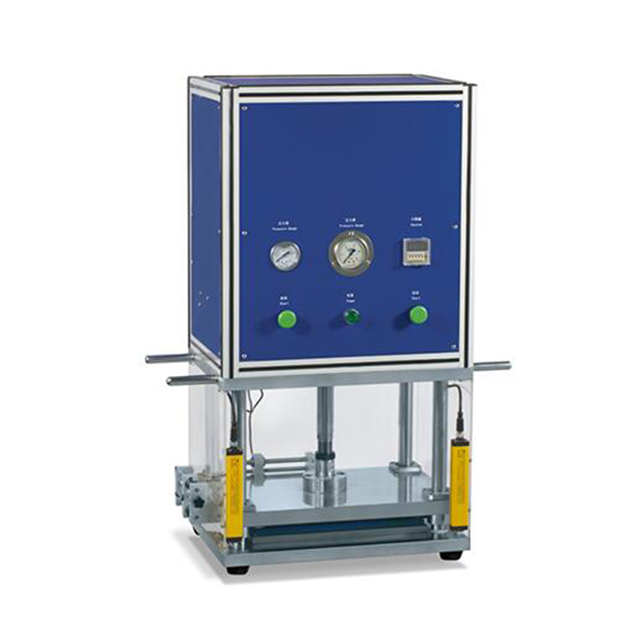

Semi Automatic Pouch Cell Battery Electrode Die Cutting Machine

Replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times);

Manual and continuous feeding, automatic discharging, and can automatically separate waste;

Inquire Now Next Product

Technical Parameters

Replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times);

Manual and continuous feeding, automatic discharging, and can automatically separate waste;

No quality defects such as burrs, off powder, indentation;

Between manual and automatic, high efficiency, 800-2000 / per hour;

Simple operation, safe and reliable, beautiful appearance, small size.

Technical Parameters:

Model	Battery Electrode Die Cutter Machine KS-PCB-DC300
Work voltage	AC110V/220V, 50/60HZ
Power	100W
Warranty	One year limited warranty with lifetime support
Max cutter die size	300mm(L) * 300mm(W)
Die Set Dimensions	One set of standard electrode die is included.within the dimensions:200mm(L) *300mm(W) Customized size die is available upon request
Safety Protection	Built in Safety Curtain to protect against hand injures during electrode feedingDouble start press button
Cutting Accuracy	±0.1mm
Air Cylinder	3 tons Max. pressure
Tensile Cylinder	0.15 tons pressure
Cutting stroke	250mm
Feeding	Manually
Production Yield	800 - 2000 pieces of electrodes per hour
Air Pressure	0.5-0.8Mpa
Dimension(LWH)	650550 900mm
Net Weight	160kg
