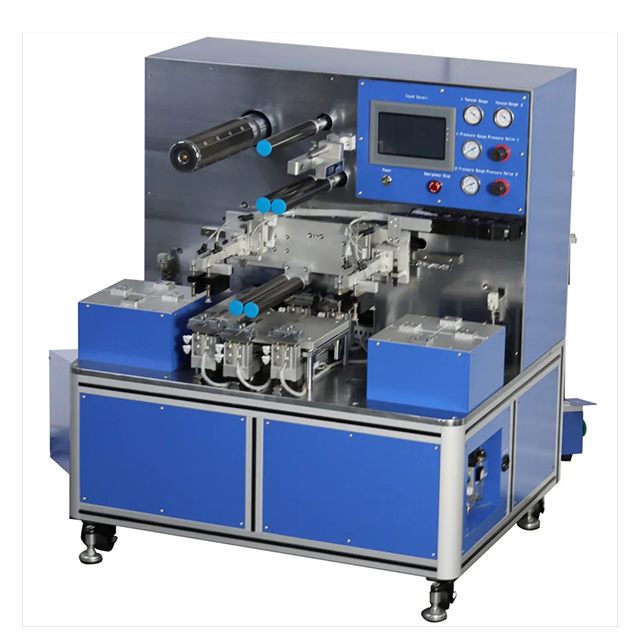

Semi-automatic battery Stacking machine with automatic correction for 200×200 battery

Product introduction: Mainly used for Z-shaped lamination assembly of positive and negative electrodes and separators of lithium batteries.

The equipment realizes manual loading, subsequent pole piece position correction and lamination process to be completed fully automatically, and has the characteristics of high lamination efficiency and high lamination accuracy. The equipment is designed to stack up to 200*200mm batteries, and different sizes can be realized by adjusting the fixture, which is very suitable for the research and development and sample production of laminated lithium-ion batteries. The equipment adopts single cantilever structure design, automatic constant tension control of coil material isolation film, automatic knitting control.

main feature:

*The number of laminations can be automatically controlled according to the preset;

*Compatibility design is adopted, the size change of the battery can be realized by adjusting the positioning fixture, and the adjustment range is large;

*PLC control, HMI operation, easy to use and maintain;

* Manual loading of pole pieces, automatic positioning, automatic suction of the manipulator, automatic stacking;

*Roll diaphragm automatic servo constant tension control.

*Diaphragm automatic photoelectric correction control.
