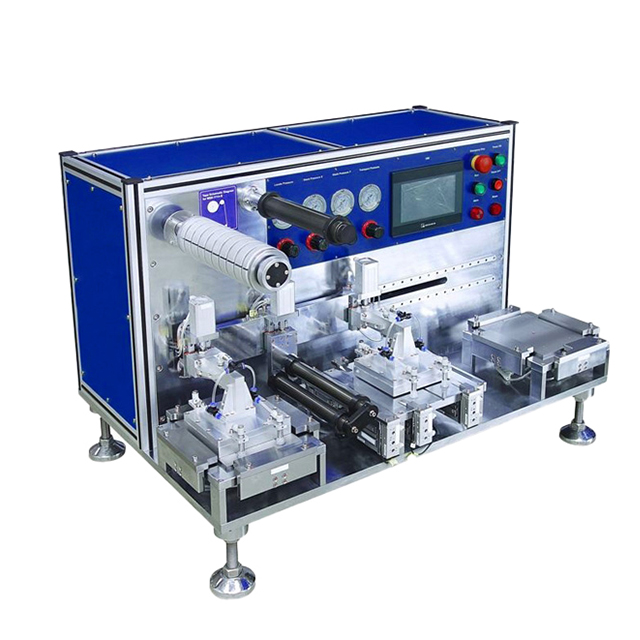

Semi-Automatic Battery Electrode Layer by Layer Stacking Machine for pouch cell

KS-PCB-LSM200 is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise battery electrode stacking.

Inquire Now Next Product

Technical Parameters

KS-PCB-LSM200 is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise battery electrode stacking.

Product Introduction

It is mainly used for the assembly of Z-shaped laminations of lithium battery positive, negative electrode and diaphragm.

The device realizes manual loading, subsequent pole piece position correction and lamination process by fully automatic, and has the characteristics of high lamination efficiency and high stacking precision. The device can be designed to stack up to 200*200mm batteries. Different sizes can be realized by adjusting fixtures, which is very suitable for the development and sample preparation of laminated lithium-ion batteries.

The device adopts a single cantilever structure design, and the coil isolation membrane automatically controls the constant tension, and the motor drives the diaphragm to move left and right to realize the zigzag lamination.

Technical Parameters:

Model	Semi-Automatic Battery Stacking Machine KS-PCB-LSM200
Working Voltage	AC220V 50/60Hz
Power	1KW
Stackable Size	200x150mm
Stackable Layers	Up to 500 layers
Stacking Speed	Up to 5 layers/min
Max. Electrode Thickness	Piled up thickness < 10 mm
Aligning Accuracy	±0.5 mm for stacked electrodes
Acceptable Separator Roll Size	I.D>3'' (76mm)O.D<9.8'' (250mm)
Stacking Fixture	One set of 80 x 50mm stacking die fixture is included customization size: Max. 200mm x 200mm;
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package.)
Product Dimensions	960 mm L x 680 mm W x 690 mm H
Weight	260 kg
