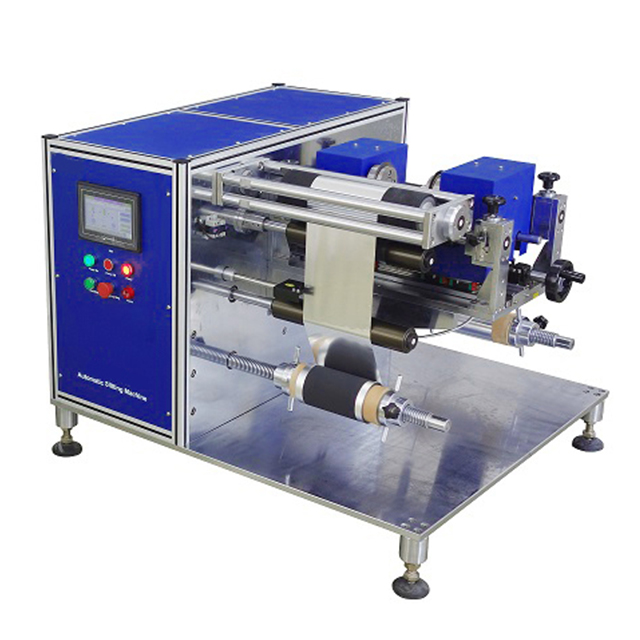

Roll to Roll Edge Slitting Machine for Electrodes of Cylindrical/Pouch Battery

KS-PCB-ESM300 is a Roll to Roll automatic slitting / trimming machine mainly used for preparing electrodes of cylindrical or pouch batteries in R&D laboratories.


Technical Parameters

KS-PCB-ESM300 is a Roll to Roll automatic slitting / trimming machine mainly used for preparing electrodes of cylindrical or pouch batteries in R&D laboratories.


Technical Parameters:

Working VoltagePower supply: Single-phase 220VAC, 50/60Hz
Max. Power Consumption400W
Features
· Burr condition: ≤ 25 um · Blade engagement: Adjustable 0.2-0.4mm, digital display·  Reeling/Unreeling Diameter: 250mm·

Cutting Blades
· Top and bottom set of round blades· Blade Materials: ultrafine tungsten alloy· Blade Diameter: 100mm
Cutting Width· 30 ~ 300mm adjustable· Stepless adjustable, manual adjustment, digital display
Cutting Thickness10 - 300 um
Cutting Speed1 - 5 meter / minute Adjustable
Product Dimensions100cm(L) x 85cm(W) x 80cm(H)
Shipping Dimensions49" x 43" x 44"
Shipping Weight1180 lb
Optional Upgrates· Muti-blade and wraping roller can be upgraded to enable slitting at 5 strips at extra cost·
Warranty· One year limited warranty with lifetime support·
