Home - Products - Battery R and D Equipment - Pouch Cell Case Cup Forming Machine for Aluminum Laminated Film

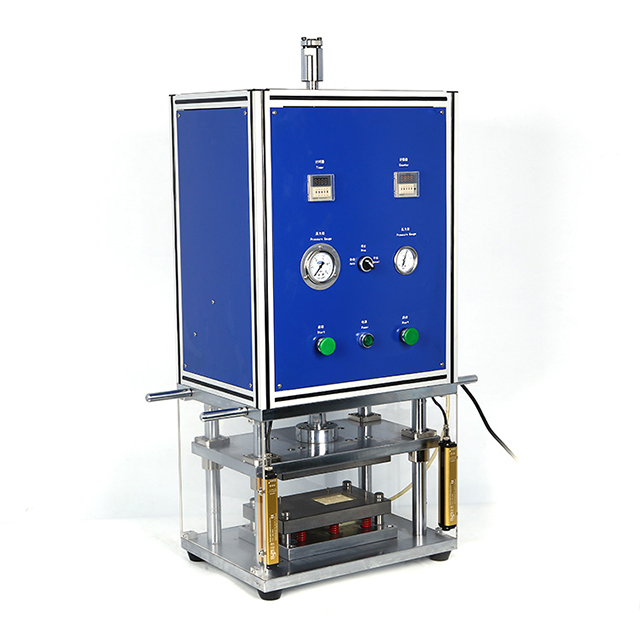

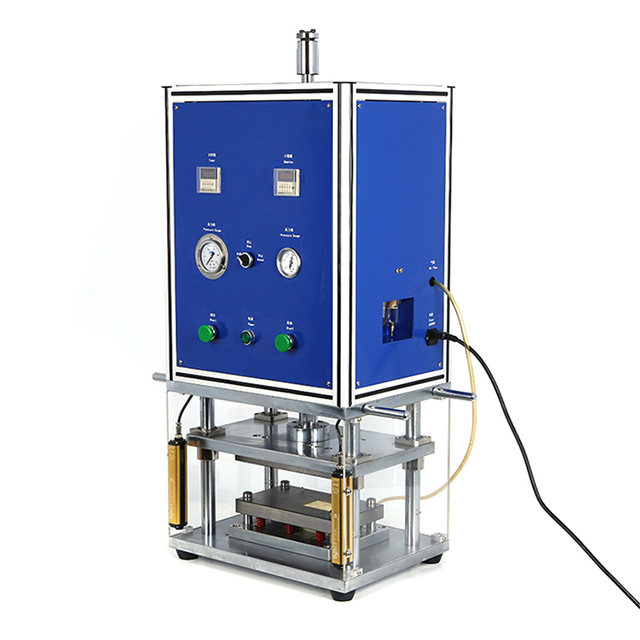

It is applied to the equipment for forming aluminum plastic film of lithium ion soft pack battery. The equipment is driven by a cylinder, and the upper and lower molding dies can be made according to customer requirements to realize the molding of aluminum-plastic film shells of lithium-ion batteries of different sizes
Technical Parameters
Features :
1.Adopting four guide pillar structure, sliding up and down smoothly and high precision;
2. It is simple and quick to change the mold and adjust the drawing depth;
3. Compared with similar products, the aluminum-plastic film of the same quality stretches deeper and more stable.
4. Precise mold design, no crow's feet and corners at all corners and around the product after molding;
5.Use light curtain and outer cover to protect, safe to use;
6. Using Japanese imported mold material and high-strength chrome steel and alloy aluminum, the surface is treated with environmentally friendly electroplating and baking paint;
7. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
Technical Parameters:
| Model | Lab Polymer Battery Pouch Forming Machine KS-PCB-CCF200 |
| Source voltage | AC 220V/110V, 50/60HZ |
| Power | 100W |
| Warranty | Two years limited warranty with lifetime support |
| Advantages | 1 Structure of guide pin, slide up and down smoothly with high precision2 Change mould, adjust tensile depth simply, quickly3 Use screen and casing protection, guarantee safety4 High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating |
| Suitable aluminum film thickness | 0.1-0.2mm |
| Suitable aluminum film size | 160*120mm(L*W), customized, with punching depth ≤6mm |
| Max. Cup Depth to Punch | Single pit punching depth ≤6mm |
| Output | 200-400EA/H |
| Output pressure | 3T |
| Air source | 0.5-0.7MPa |
| Mold materials | S136 Die steel |
| Dimension(L*W*H) | 460*320*925mm |
| Weight | About 130kg |
