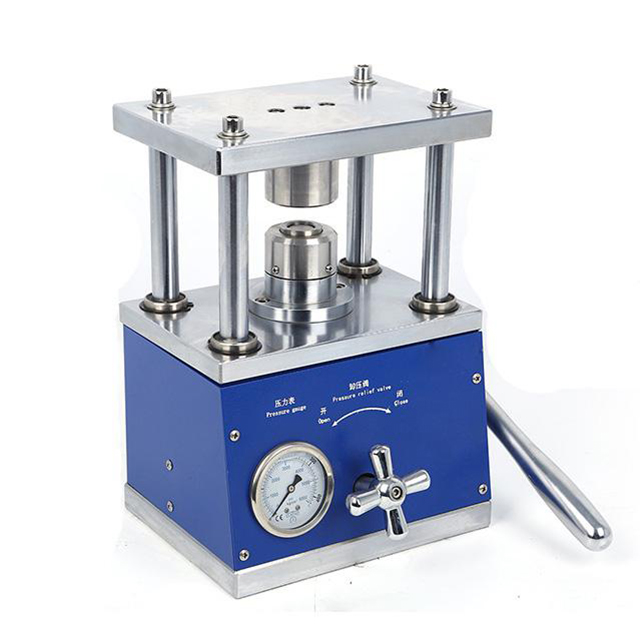

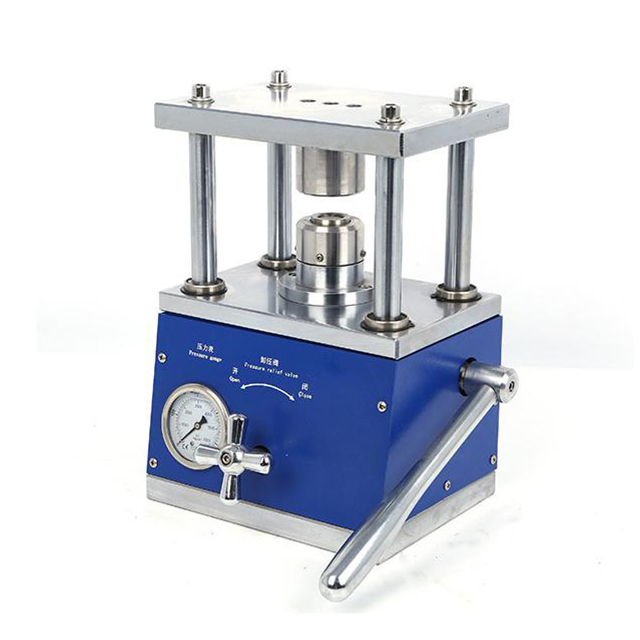

Manual Coin Cell Crimper Machine Tool for Lab CR20XX Button Battery Crimping

It is used in the production of samples for the research and development of battery materials in the laboratory for button batteries and capacitor scientific research sealing


Technical Parameters

It is used in the production of samples for the research and development of battery materials in the laboratory for button batteries and capacitor scientific research sealing, and can also be used for small batch trial production in factories. It adopts electric mode and saves effort. It can also be used for dry powder tableting, wet powder tableting, compression molding, riveting and other operations with different molds. A set of molds for CR20 series button batteries such as CR2032, CR2025, CR2016, etc.


Technical Parameters:

ModelHydraulic Crimping Machine KS-CCB-CR20
Standard Crimping Die1 One set of crimping die for CR2032,CR2025,and CR20162 Optional die available
Rocker Pressure<6kg
Max Pressure200kg/cm2(The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
Working Pressure80-100kg/cm2
Dimension(L*W*H)232*170*330mm
Weight28kg
Shipping Weight35kg
WarrantyOne Year limited warranty with lifetime support
