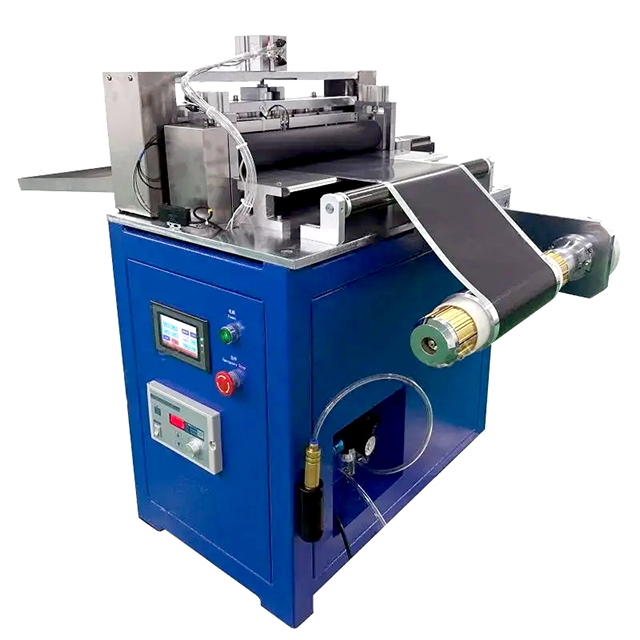

This product is mainly used for cutting single pieces of positive and negative electrodes of lithium batteries. The cutting length, quantity and speed can be set arbitrarily, and cutting can be done separately. This machine has an automatic unwinding function, and the tension frame controls the automatic unwinding and automatic stop. The speed is adjustable during unwinding, and the loading shaft is an air-expanding shaft, which is easy to load and unload.
Technical Parameters
Product Description:
This product is
mainly used for cutting single pieces of positive and negative electrodes of
lithium batteries. The cutting length, quantity and speed can be set
arbitrarily, and cutting can be done separately. This machine has an automatic
unwinding function, and the tension frame controls the automatic unwinding and
automatic stop. The speed is adjustable during unwinding, and the loading shaft
is an air-expanding shaft, which is easy to load and unload.
Product Features:
* The cutting
length, quantity and speed can be set arbitrarily, and can be cut individually;
* Automatically
adjust the tension when unwinding;
* Continuous
cutting, fixed length and cursor tracking are optional, suitable for
multi-section cutting, front and back compensation at the cut can be set;
* The width is
10-300 mm, and the length is arbitrarily set within 1-9999 mm.
* The machine
adopts PLC human-machine interface control, which is easy to operate.
Technical parameters:
| Product name | Lithium battery positive and negative electrode single chip automatic cross-cutting machine |
| Product model | KS-CDB-ACC300 |
| Unwinding | The unwinding air shaft is fixed, and the unwinding tension uses automatic unwinding, constant tension. |
| Fixed-length cutting speed | 5-250mm/s |
| Color tracking cutting speed | 5-150mm/s |
| Unwinding diameter (Max) | 250mm |
| Burr condition ≦25um | |
| Error | ≦0.5mm |
| Power supply | 220V/50Hz |
| Power | 1.2KW |
| Compressed air | 0.5Mpa～0.8 Mpa |
| Applicable scope | Cutting with a width of 300mm and a length of 1×9999 mm |
| Cutting accuracy | The fixed length uses a servo system and a color mark sensor to track the fixed length, with high accuracy, and the cutting accuracy within the adjustable range is ± 0.3mm |
| Total size of the equipment | L700*W700*H1000mm (the guide plate is 800 long and the total machine length is 1500mm) |
| Weight | about 340kg |
