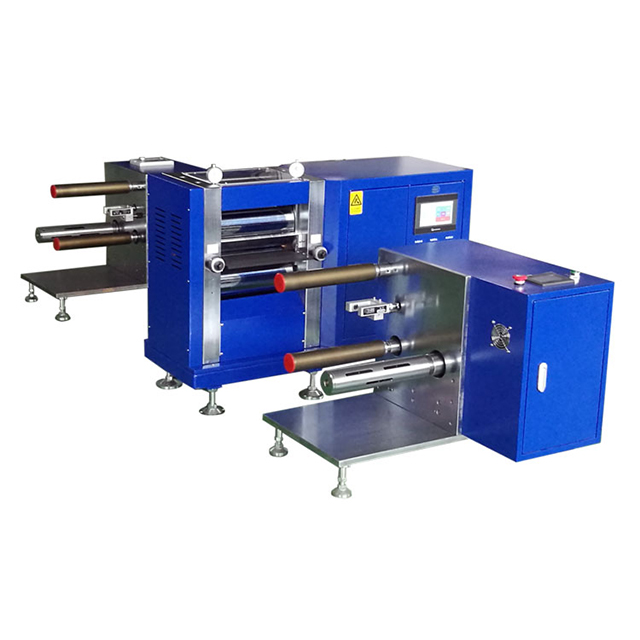

Home - Products - Battery R and D Equipment - Hydraulic balance electric roll to roll roller countering machine + winding and unwinding
It is mainly suitable for battery materials in the laboratory, with adjustable rolling thickness and simple operation. It is especially suitable for cleaning the thinning and increasing density of lithium battery plates of energy source materials
Technical Parameters
It is mainly suitable for battery materials in the laboratory, with adjustable rolling thickness and simple operation. It is especially suitable for cleaning the thinning and increasing density of lithium battery plates of energy source materials
Rolling specifications
Rolling use: rolled aluminum foil or copper foil surface coated battery material
2. Rolling mill maximum opening thickness: 3mm
3. Minimum rolling thickness: 0.01mm
4. Rolling width: max 300mm
5. Finished product thickness tolerance: ±2% Hmm
Technical Parameters:
| Model | KS-PCB-W300 |
| Rolling force | Max 20KN |
| Rolling speed | 1～3m/min |
| Work rollers | Diameter: Ф200 mm; Material: 9Cr3Mo |
| Roll face width | 300 mm |
| Press-down type | hydraulic pressure |
| precision | ±0.003 mm |
| Maximum opening of the rolling mill | 3 mm |
| Reducer and split gearbox | Combined |
| Rolling mill motor power | 1.5 KW AC VARIABLE FREQUENCY MOTOR |
| Unwind, winding motor power | 0.55KW AC variable frequency motor |
| Tension control form | The floating guide roller is equipped with an absolute photoelectric encoder |
| voltage | 380V 4KW |
