It is used in the production of samples for the research and development of battery materials in the laboratory for button batteries and capacitor scientific research sealing
Technical Parameters

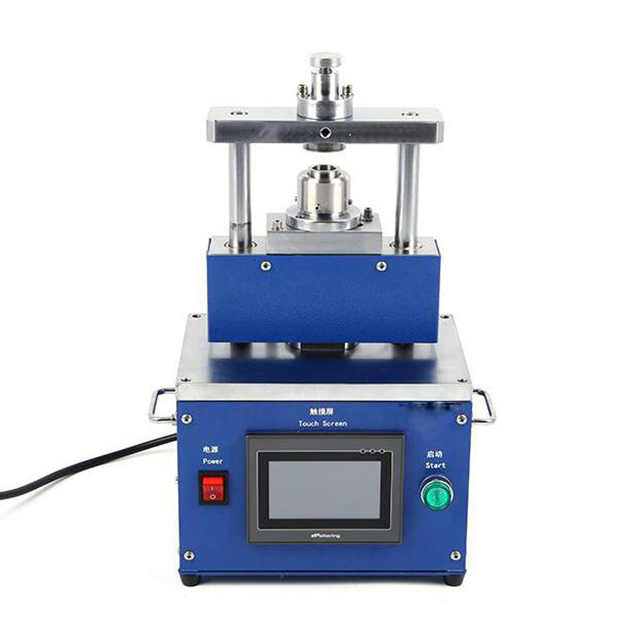

It is used in the production of samples for the research and development of battery materials in the laboratory for button batteries and capacitor scientific research sealing, and can also be used for small batch trial production in factories. It adopts electric mode and saves effort. It can also be used for dry powder tableting, wet powder tableting, compression molding, riveting and other operations with different molds. A set of molds for CR20 series button batteries such as CR2032, CR2025, CR2016, etc.
Features :
1.Electric operation with touch screen .
2.High precision mould design to ensure stable sealing
3.Simple to change crimping die .
4.Small size can be put into glove box through Dia.360 antechamber.
Technical Parameters:
| Model | Electric Crimping and Disassemble Machine for Coin Cell KS-CCB-CR20PRO |
| Voltage | 110 - 240V AC 50/60Hz |
| Die Set &Compatibility | 1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells.2.Please read operation manual to see how to replace die from crimping to disassembling. |
| Structure | Heavy Duty Steel Platform,High strengthen chrome steel or alloy aluminum, the surface treated through environmental electroplating and painting and never rusts. |
| Warranty | One Year limited warranty with lifetime support |
| MaintenanceNotes | Electrolytes are highly corrosive materials, and therefore the die set must be cleanedwith alcohol after each use to avoid corrosion and to maintain the equipment's integrity. |
| Net Weight | 40 kg |
