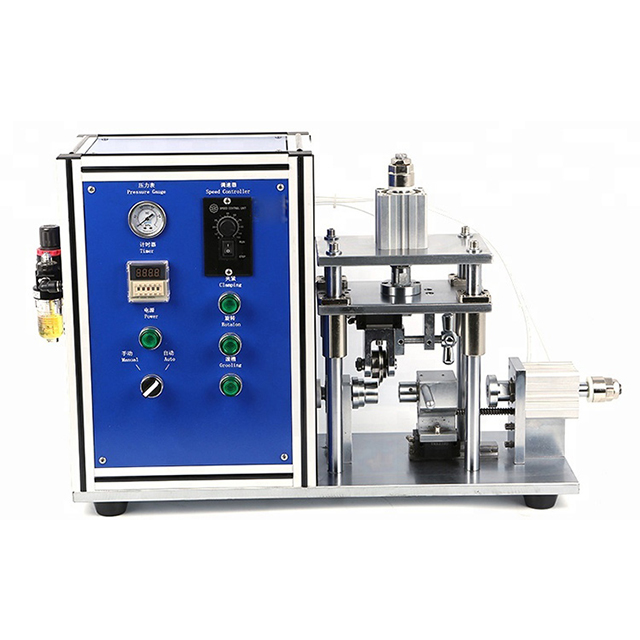

Semi-automatic cylindrical battery cases grooving machine is and desktop type, It is used for grooving various cylindrical cell cases including CR123,18650 26650, 32650 cells with customized grooving
Technical Parameters
Semi-automatic cylindrical battery cases grooving machine is and desktop type, It is used for grooving various cylindrical cell cases including CR123,18650 26650, 32650 cells with customized grooving
Features :
1. Grooving width is adjustable.
2. Grooving depth is adjustable.
3. Grooving time can be set.
4. Stepless-speed is used for grooving speed.
5. Use Manual or automatic grooving mode.
6. Different types of cylindrical battery shell can be grooved.
7. Hobbing cutter is precision machined to ensure the accuracy and reliability of grooving formation and the stability of use.
8. The operation is convenient and can be handled inside the glove box.
Technical Parameters:
| Model | Grooving Machine KS-CDB-GC-650 |
| Source voltage | 110V-220V AC, 50/60Hz Single Phase |
| Power | 140W |
| Warranty | One year limited and lifetime support |
| Suitable battery model | 18650 / 26650 / 32650, can be customized |
| Grooving cutter position | 0-20mm(adjustable) |
| Grooving speed | 0-300r/S(adjustable) |
| Grooving depth | 1-5mm adjustable |
| Grooving width | 1.1-1.5mm |
| Grooving precision | ±0.1mm |
| Knife life | >100 0000times |
| Air supply | 0.5-0.7MPa |
| Dimension | 600*450*350mm |
| Weight | 68kg |
| Advantages | 1 Customized die for other cylindrical cell types is available according to request2 Each type of cylinder cell can only be grooved specifically by certain model ofthis equipment. Please select the type of cylinder cell for the corresponding grooving die of each cylinder cell type. |
