Home - Products - Battery R and D Equipment - Desk-Top 800W Ultrasonic Metal Welder with Touch-Screen Digital Controller
It is designed for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors to prepare Li-ion pouch cells in R&D laboratories.
Technical Parameters

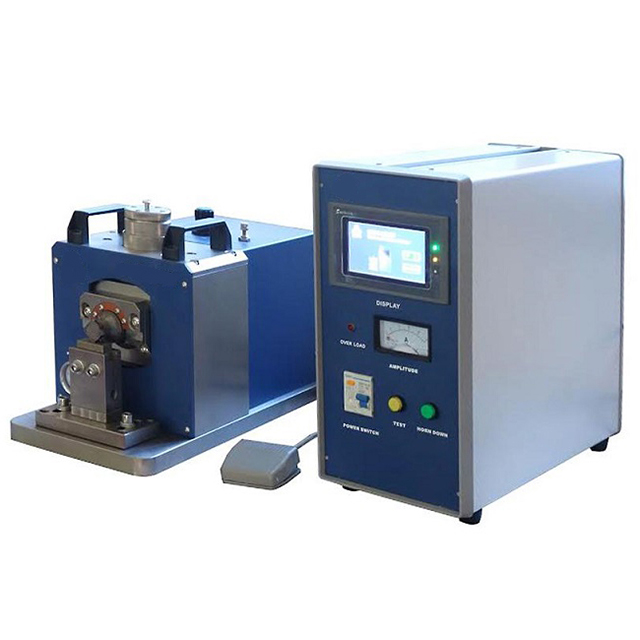

KS-PCB-USW800 is a ultrasonic metal welder with a color touch-screen
controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors to prepare Li-ion pouch cells in R&D laboratories.
Technical Parameters:
Features | · Welding time, delay time, welding layers...adjustable,Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...);· Up to four recipes can be stored in the Al or Cu welding programs. · Amp meter provides instant monitoring of the welding current |
| Input Voltage | AC 110V or 220V +/-10%, 50/60Hz (Please select in the product option bar) |
| Max. Power Consumption | · 800W (Max 15 layers) |
| Welding Area | 4mm(L) x 4mm(W) |
| Ultrasonic Frequency | 40K Hz |
| Pneumatic Control (Not included) | Air pressure at 85 psi is required for the operation (Air Compressor is not included. |
| Product Dimensions | · Controller: 481mm(L) x 188mm(W) x 375mm(H)· Welder: 513mm(L) x 220mm(W) x 275mm(H) |
| Warranty | One Year limited warranty with lifetime support |
| Net Weight | 50 kg (110 lbs) |
| Shipping Weight & Dimension | · 150 lbs· 40" x 30" x 27" |
