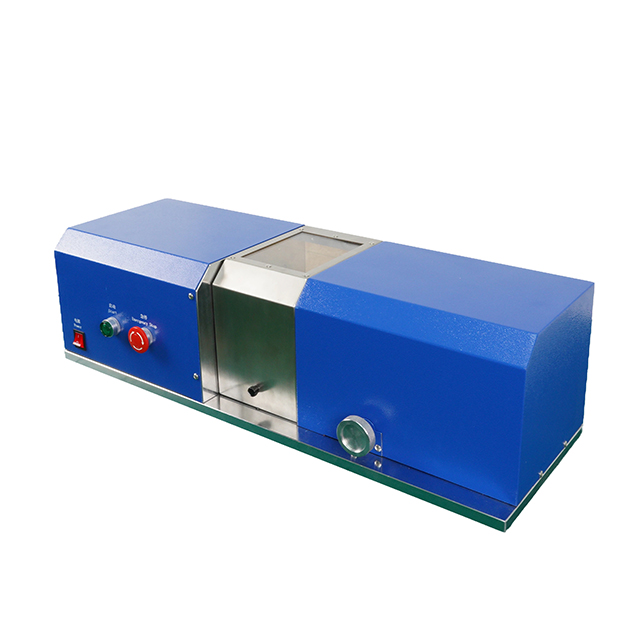

Home - Products - Battery R and D Equipment - Cylindrical Battery shell removal machine KS-CDB-CBS650
The cylindrical battery shelling machine is mainly used for laboratory 18650 samples to be shelled after sealing, so as to pick up research and verification.
Different
specifications of molds can be used to split cylindrical lithium batteries of
different models (such as 18650, 26650). The whole machine is safe to operate,
compact
in design, flexible and convenient to use.
Technical Parameters
Product Introduction·
The
cylindrical battery shelling machine is mainly used for laboratory 18650
samples to be shelled after sealing, so as to pick up research and
verification.
Different
specifications of molds can be used to split cylindrical lithium batteries of
different models (such as 18650, 26650). The whole machine is safe to operate,
compact in design, flexible and convenient to use.
Main
features·
Can
disassemble various cylindrical batteries of 18 series and 26 series
specifications.
High
disassembly precision, will not damage the battery cells inside the battery
shell.
Easy
to operate, safe and reliable, beautiful appearance.
Technical parameters:
| Product model | KS-CDB-CBS650 |
| Product name | Cylindrical Battery shell removal machine |
| Shell disassembly mold | standard 18650 shell disassembly mold (optional 26650) |
| Slicer motor speed | 1000rpm |
| Mold speed | 320rpm |
| Shell cutting saw blade Material | tungsten steel |
| Micrometer scale value accuracy | 0.05mm |
| Power supply | AC220V |
| Power | 150W |
| Dimensions | 550×250×220mm |
| Weight | 20Kg |
