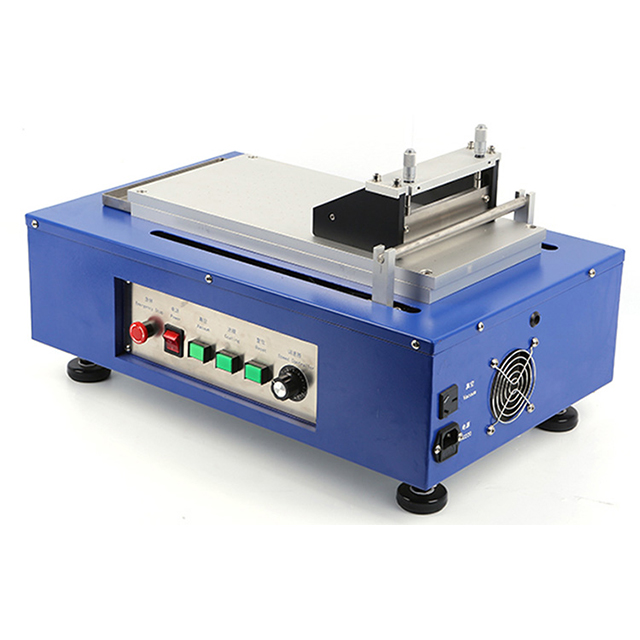

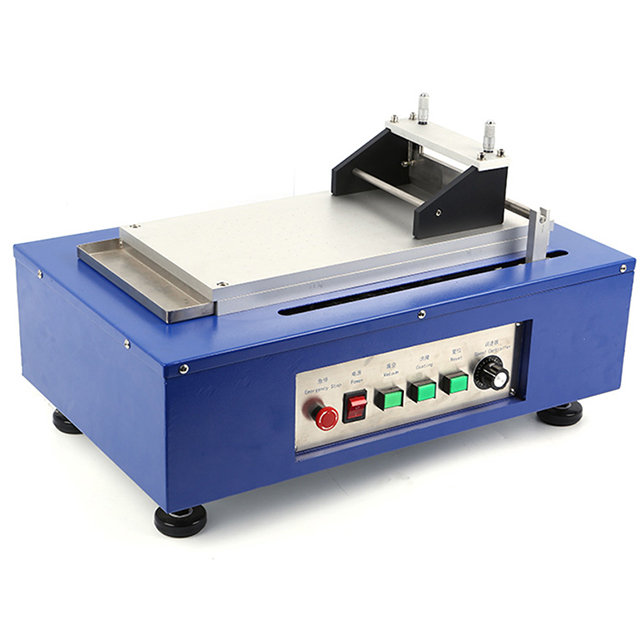

Compact Lab Tablet Film Coater Machine for Battery Electrode Coating

Automatic film coating machines are widely used in various coating researches, such as ceramic films, crystal films, battery material films, and special nano films. Adjust with a micrometer to achieve the thickness of the film to be coated. The instrument is equipped with a precise adjustable film device, and the moving push rod pushes it to move at a constant speed, so as to achieve the uniformity of the slurry coating on the substrate. This equipment is particularly suitable for making battery substrates, which can ensure the substrate The density of the positive/negative electrode material in each part of the sheet is uniform.

Features :
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate in quick.

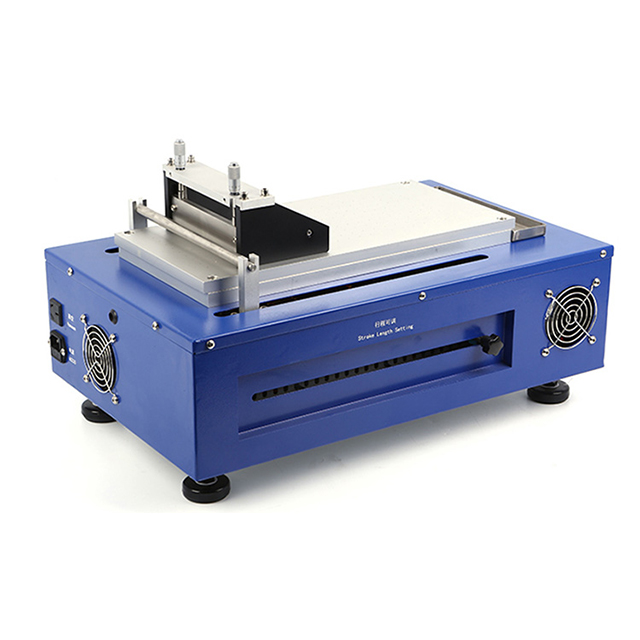

3. Stroke can be regulated by travel switch at the range of 0~300mm.
4. Accuracy of adjustable coating machine is 0.01mm.
5. Small dimension saves space.

Technical Parameter:
