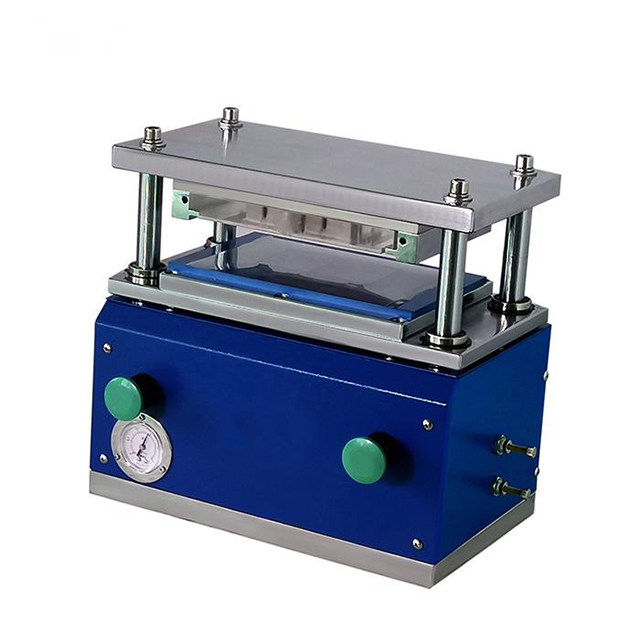

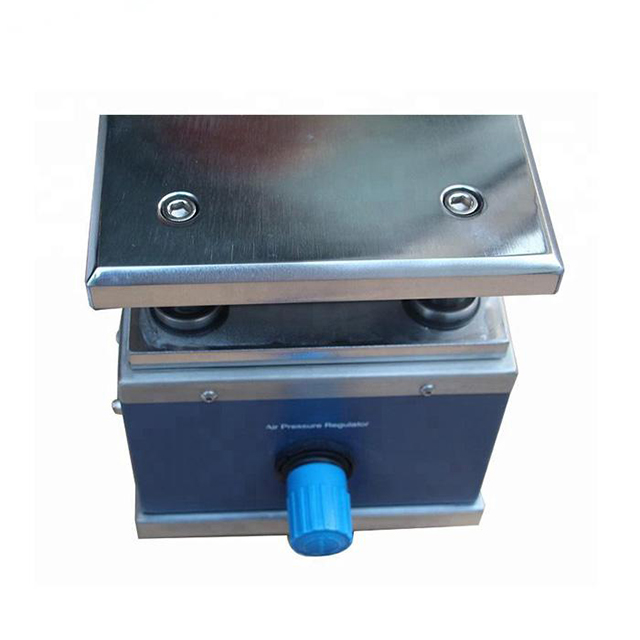

This product is suitable for die-cutting and forming of the positive and negative plates of the battery. The single-piece die-cutting of the piece-type pole piece is carried out pneumatically, and it can be placed in a glove box for use.
Technical Parameters
Features :
1. Slice-type pole piece feeding, knife template realizes die-cutting, and can be used in the glove box;
2. It is convenient and quick to change the knife mold;
3. Long tool life, normal use ≥ 30,000 times;
4. There are no quality defects such as burrs, powder falling, indentation, etc.;
5. Adopting four guide pillar structure, sliding up and down smoothly and high precision;
6. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
Technical Parameters:
| Model | Pneumatic Battery Electrode Die Cutter KS-PCB-DC85 |
| Vertical burr | ≤12μm |
| Horizontal burr | ≤20μm |
| Max punching size | L85*W65mm(can be customized according to requirements) |
| Punching accuracy | ±0.1mm |
| Punching pressure | Max. 1T (0.5MPa compressed air)Punching the battery electrode recommended pressure 500Kg |
| Stroke | 35mm |
| Compressed air | 0.5MPaIf placed in a glove box, the gas used is the same as that used in the glove box. |
| Dimension(L*W*H) | 350*230*300mm |
| Weight | 32kg |
| Warranty | One year limited warranty and lifetime support |
