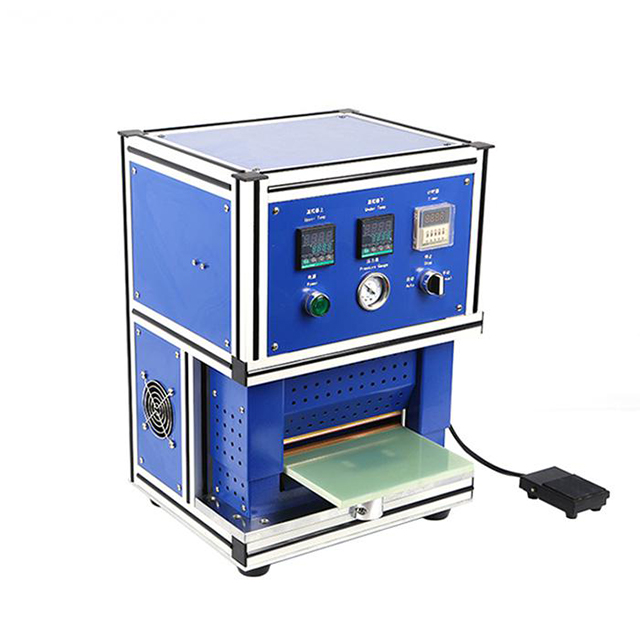

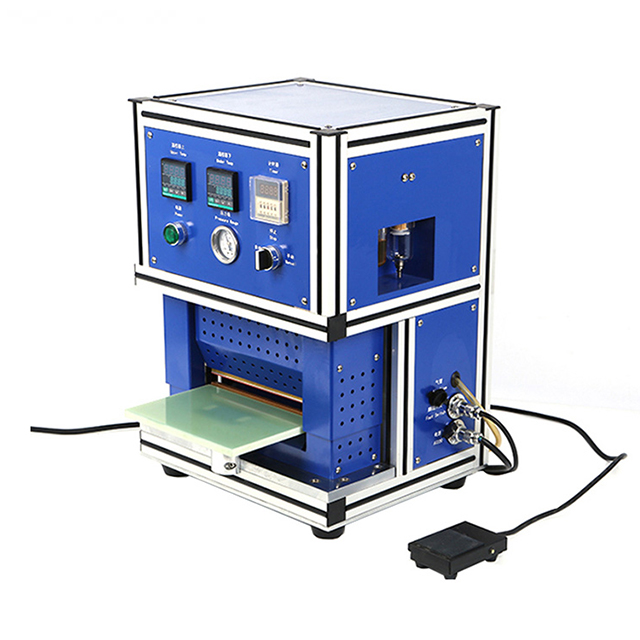

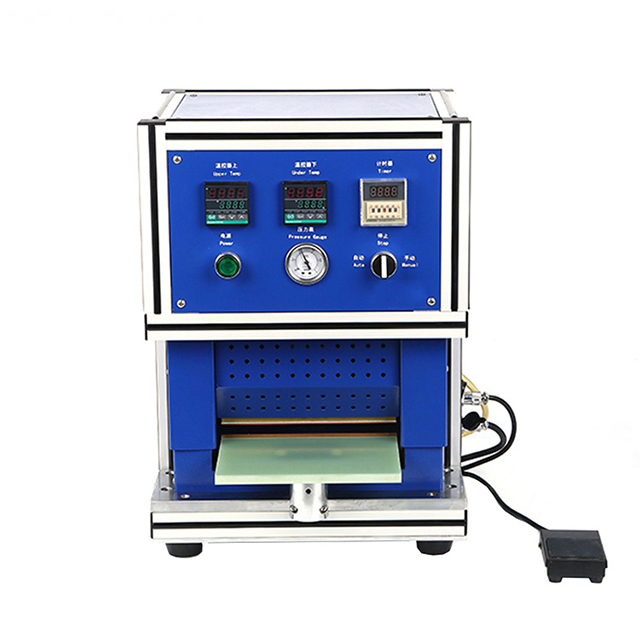

Compact Battery Heat Sealing Machine for lithium polymer battery

Mainly used in heating type sealing equipment on the top and side of soft packaging lithium-ion batteries. The device uses resistance heating to seal the head, so that the aluminum-plastic film can be fused under the set pressure.

Inquire Now Next Product

Technical Parameters

Features :
1. Unique safety protection and anti-scalding design, the temperature of the upper and lower ironing heads can be adjusted by the button on the thermostat panel;

2. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;

3. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

4. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the parallelism requirements of the product after edge sealing;

5. It can be applied to different specifications of product batteries, and the adjustment is simple and convenient, no need to adjust and replace the seal head;

Technical Parameters:

Model	Heat Sealing Machine KS-PCB-HS200 for Lithium Polymer Battery
Power Supply	220V 50Hz ( 110V is available request )
Sealing Length	200 mm Max.
Sealing Width	5 mm (3-10mm)
Sealing Thickness	0.15 - 0.3 mm
Max. Power	500W
Sealing Pressure	0.5 - 0.7 MPa adjustable
Sealing Temperature	RT-250degree centigrade, adjustable
Heating Timer	0 - 99 Seconds Adjustable
Warranty	One Year limitedwarranty with lifetime support
Product Dimensions	430mm(L) x 330mm(W) x 480mm(H)
Net Weight	35kg
Sealing blade type	Soft sealing blade(Copper sealing blade with aluminum and Silicone rubber piece, good for Al film case sealing and case with tab in between,suitable for both top sealing and side sealing)
