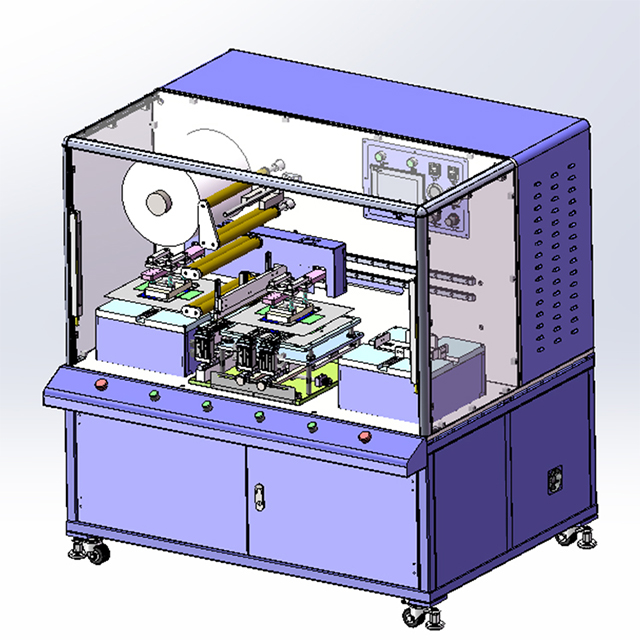

Battery roll to roll continuous slitting machine KS-CDB-RCS400

Product Introduction

Adopts two or more continuous slitting processes for roll materials. The equipment is equipped with a precision knife seat, which can achieve extremely high-precision foil slitting, and is widely used in lithium batteries, metal foils, optical films and other functional film industries.

Functional Features

Ultra-fine tungsten steel blades, good slitting quality, and ultra-long service life;

Slitting width precision is high, and the finished product has no burrs, no waves, and no indentations;

The amount of cutting is adjustable, and the ratio of knife speed to material linear speed is adjustable;

By adjusting the feeding and discharging angles, it can adapt to the slitting of materials of different materials and thickness values;

Single vertical plate structure, independent knife seat, equipped with dust removal device;

Upper and lower circular knife structure, slitting width can be adjusted by replacing the spacer;

Automatic control of winding tension, upper and lower shafts can be adjusted independently within 50N;

OPLC control, HMI operation, convenient and easy to use;

Technical parameters:
