5V3A Lithium ion Battery Testing Equipment for Cylindrical Battery and Pouch Cell

This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

Inquire Now Next Product

Technical Parameters

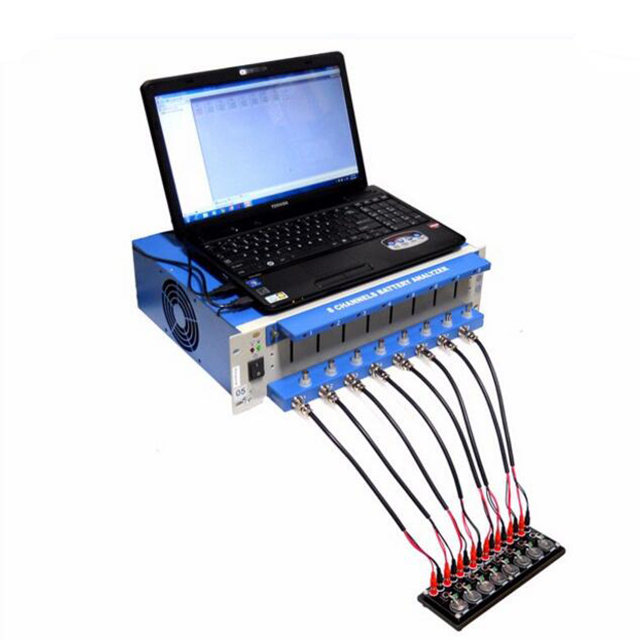

8 channels 5V 3A voltage and DC internal resistance tester lithium battery tester

battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 6.0 mA to 3000 mA, up to 5V.

Technical Parameters:

Model		KS-BTS-5V3A
Input Power		AC 220V ±10% / 50Hz
resolution		AD:16bit; DA:12bit
Input Resistance		≥1MΩ
Input Power		224W
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	10mV~5V
	Discharge Min Voltage	0.8V
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Current	Per Channel Current Range	6mA~3000mA
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Power	Per Channel Output Power	15W
Power	Stability	± 0.2% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step,Time Form Support 00:00:00(h,min:s,ms)
Data Recording	Record Condition	Time: 1s-60000s
		Voltage: 10mV-5V
		Current: 6mA-3000mA
	Record Frequency	1Hz
Discharge	Discharge Mode	CCD,CPD
Discharge	End Condition	Voltage,Current,Relative Time,Capacity,
Pulse	charge	CCC
	Discharge	CCD
	Min Pulse Width	500ms
	Automated Switch	Automated switch from charge to discharge for each pulse
	End Condition	Voltage, Test Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	63
	Nested Loop	Nested loop Function,Max Support 3 Layers
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
Data Output		EXCEL2003/2010,TXT
Communication Interface		R232
Per Unit Main Channels No.		8
Dimensions		480330130(mm)
