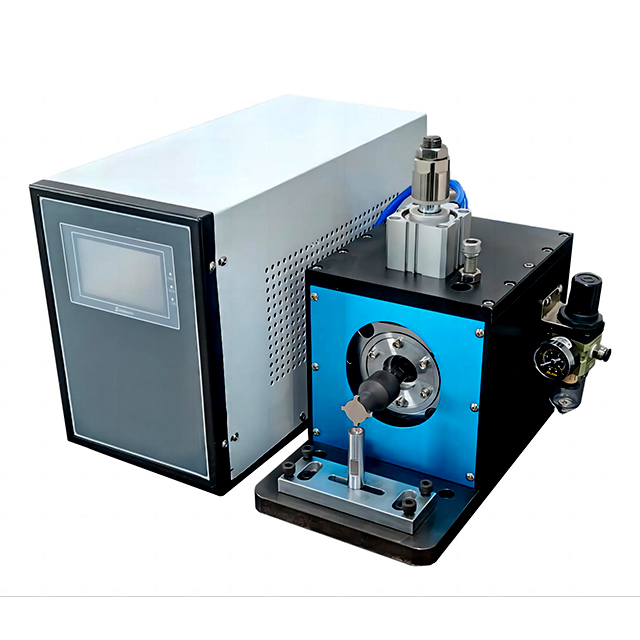

Ultrasonic metal spot welding machine is generally used for metal welding in coiling and lamination processes. It has the characteristics of small size, beautiful appearance, easy operation, solid structure, stable and safe use.
Technical Parameters
main feature:
*Touch screen interface, intuitive and convenient, with automatic frequency tracking.
*No traces of oxidation. Ultrasonic waves have a cleaning function. Even if there are contaminants or oxides on the metal surface, it can be welded perfectly without surface treatment.
*All workpieces do not need to be pre-processed and can be welded without soldering tin or soldering oil additives, which is economical and convenient.
*The welding head is made of wear-resistant materials for long-lasting durability.
*The internal resistance of the solder joint is small. After welding, the conductivity is good, and its resistivity is extremely low, close to zero.
*The welding time is very short, and welding can generally be completed instantly within 0.01-2S seconds.
* The solder joint is firm, the working temperature does not exceed its annealing temperature, and the metallographic structure of the workpiece is not changed. Its welding strength is stronger than other welding methods, and the welding interface is neat and clean.
*Welding has low cost, fast speed, easy operation and convenient maintenance.
*No sparks are produced during welding, the operator is safe and assured, there is no smoke smell, and it will not cause air pollution.
Technical Parameters:
| Product Model | KS-PCB-USW800A |
| Overall dimensions | Chassis length 440mm × width 190mm × height 290mmWelding box length 330mm×width 190mm×height 340mm |
| Net weight | 35Kg |
| Output power | 800W (adjustable) |
| Welding layer | within 20 layers |
| Working environment temperature | +5°C to +50°C |
| Sine harmonic parameters | ≥97% |
| Input power factor | ≥80% |
| Working frequency | 40KHz |
| Working power supply | AC220V 50Hz |
| Mold frequency range | ±400HZ (taking 15KHZ ultrasonic as an example, the mold frequency can be used for automatic frequency tracking between 14.40-15.20KHZ.) |
| Automatic frequency tracking accuracy | ±5HZ |
| Power stability | ≤ 5% |
| Remote terminal dynamic response | ≤10ms |
| Overcurrent protection current | 15A |
| Overcurrent protection time | 100ms |
| Overheating protection temperature | 85℃ |
