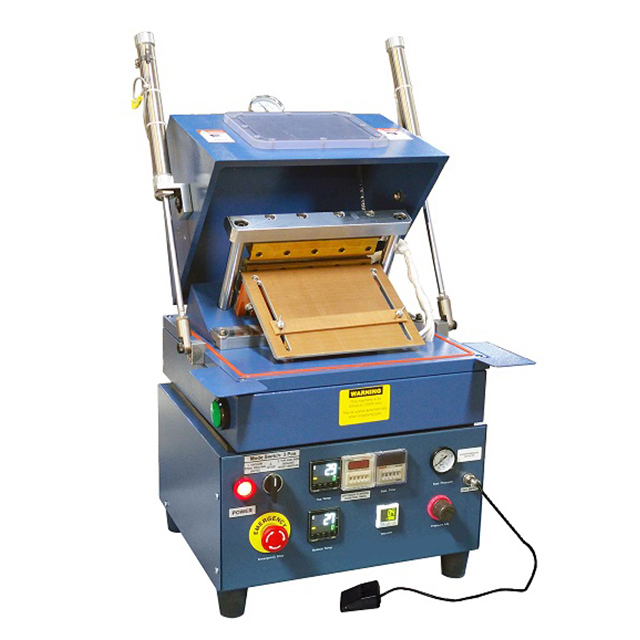

KS-PCB-VHS115 is a 3-in-1 compact hot sealer.
· the preliminary sealing top and side of the pouch cell before electrolyte injection
· the vacuum sealing for the pouch case after injection of electrolyte in the glove box
· the vacuum standing for the electrolyte diffusion and degassing
It is designed for Li-S pouch cell preparation in glove-box for the space saving.
Technical Parameters:
Features
Designed & Made in USA | Sealing Mode (Top，Side and vacuum ):· KS-PCB-VHS115 is specially designed for hot sealing the top side of the pouch cell with the tab extruded. Unlike hard type sealing blade, the soft type sealing blade is able to eliminate the sealing gap caused by the battery taps.· Vacuum Sealing Mode: After electrolyte injection, KS-PCB-VHS115 is also able to perform the final vacuum sealing for the pouch cell. · Vacuum Standing Mode: After the vacuum sealing, KS-PCB-VHS115 is able to do the vacuum standing for the electrolyte diffusion and degassing. The vacuum timer would be used for the standing time control. |
| Max. Sealing Dimensions | 200mm(L) x 150mm(W) |
| Edge Sealing Width | 5mm |
| Sealing Blade | Soft type (with rubber, suitable for sealing case with tab in between) |
| Power Supply | 110V or 208-240V selectable, Single Phase 50/60Hz |
| Max. Power | 600W |
Vacuum Level
| · -90 kPa Max.· The vacuum pump is not included. · If you have your own pump with KF25 PORT, |
| Shipping Weight & Dimension | 215 lbs; 48"x40"x29" |
| Sealing Temperature | 50 - 250°C adjustable with control accuracy of +/-2°C |
| Net Weight | 150 lbs |
| Heating Timer | 0 - 99 seconds Adjustable |
