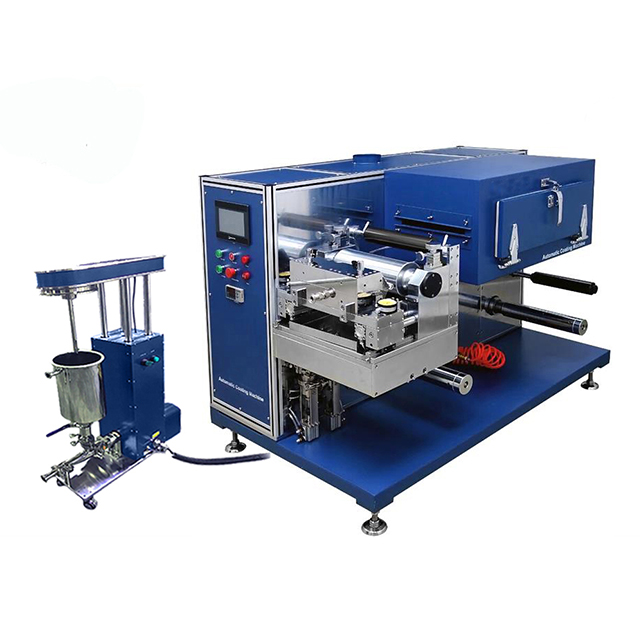

KS-CDB-W250 is a automatic slot-die coating system with a compact footprint that is less than 6'x3'. It is perfect for making uniform coatings from 1~300 micron thick.
Technical Parameters
KS-CDB-W250 is a automatic slot-die coating system with a compact footprint that is less than 6'x3'. It is perfect for making uniform coatings from 1~300 micron thick.
For Roll to Roll Coater Service, please fill out and submit the Roll to Roll Coating Service Request Form.
Technical Parameters:
| Working Voltage | 208 - 240 VAC, 50/60 Hz, Single Phase |
| Max. Power Consumption | 5 KW ( 50A Air breaker required ) |
| Slot Die Coating | The slot die is perfect for uniform film coating of 1 micron and up to 300-micron thickness. |
| Slurry Feeding Pump | · slurry feeding screw pump with 4 liters tank is optional · 24DC Input, 500W· 0.5~0.8MPa compress gas is required. |
| Shim (Spacer) | 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm & 0.8mm thick shims are included for producing films with various thickness. Tip: The thickness of the shim determines the slot opening of the die and thus has major impact on the final coating thickness. |
| Max. Coating Width | 250 mm |
| Max. Coating Length | Depends on the coating and substrate thickness. |
| Coating Speed | 0-800 mm / minute |
| Minimum Thickness & Precision | 1 µm ±1% ( dried film ) |
| Max. Drying Temperature | 150°C |
| Heating | Forced convection hot air (IR + UV heating is available upon request) |
| Temperature Accuracy | ±1°C |
| Heating Zone Length | 710mm (28") |
| Reeling/Unreeling Shaft | 75mm (ID) |
| Max. Reeling/Unreeling Diameter | 250mm (OD) |
| Compressed Air | 0.5-0.8 MPa (Air compressor not included. ) |
| Product Dimensions | Coater: L 1750 mm*W 950 mm*H 1060 mm Slurry Feeding Pump: W 660*D 200*H 660 mm |
| Warranty | · One Year limited warranty with lifetime support· |
| Net Weight | 1000 kg (2200 lbs) |
| Shipping Dimension | 70" x 45" x 55" |
