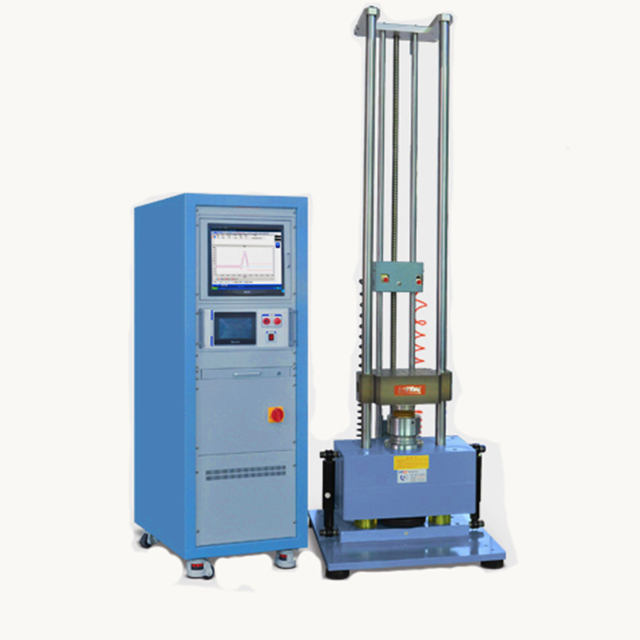

Home - Products - Battery R and D Equipment - 2000g High Acceleration Shock Test Systems Test for Electronic Components and Battery
All operation accomplished automatically. Rebound brake mechanism by automatically controlled.
Using the anvil as a vibration insulation seismic base, to reduce the vibration effect the surrounding.
Technical Parameters
Product Description:
The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Product Features:
All operation accomplished automatically. Rebound brake mechanism by automatically controlled.
High rigid shock table.
Using the anvil as a vibration insulation seismic base, to reduce the vibration effect the surrounding.
Technical Parameters:
| Model | KS-BT-HAS2000 |
| Table size (mm) | 200 x200 |
| Specimen max weight(kg) | 10 |
| Shock pulse | Half-sine |
| Acceleration range (m/s2) | 20-2000 |
| Pulse duration range (ms) | 0.2~18 |
| Max.Drop Height(mm) | 1500 |
| Mechine Dimension(mm) | 660*700*2380 |
| Utility reqyurements | AC220V 50Hz 5A |
| Air pressure | more than 0.5Mpa |
