Home - Products - Battery R and D Equipment - 180mm Continuous Electrode Coating Machine for Lab Battery Manufacturing

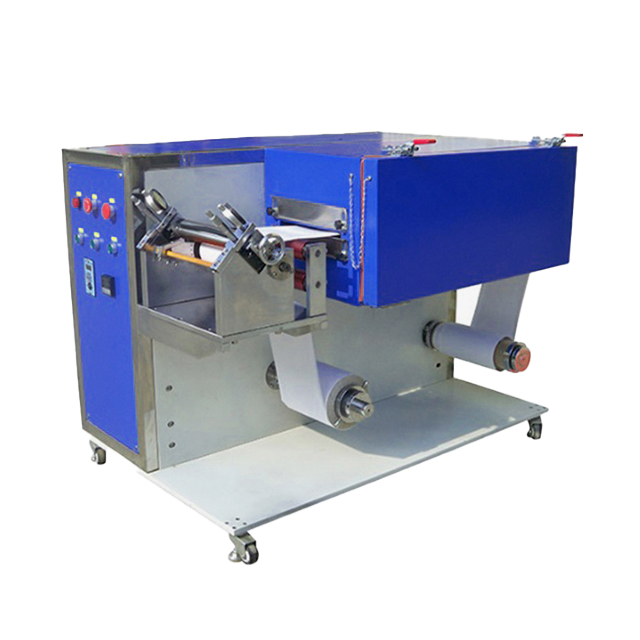

KS-CDB-W180 Lab battery electrode coating machine is a compact Roll to Roll continuous coater for small size battery research in laboratory of university and factory.
Technical Parameters
KS-CDB-W180 Lab battery electrode coating machine is a compact Roll to Roll continuous coater for small size battery research in laboratory of university and factory.
This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final electrode rewinding. It can coat electrode sheets up to 180mm width and 500 meter length automatically.
This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.
One convenient design is that it has four wheels on bottom of equipment, it can be removed easily for laboratory use.
Technical Parameters:
| Model | Lab battery electrode coating machine KS-CDB-W180 |
| Source voltage | AC 220v 50Hz , can be customized |
| Power | 3000W |
| Warranty | One Year limited warranty with lifetime online support |
| Coating mode | Continuous coating |
| Max coating width | 180mm |
| Applicable matrix thickness | Aluminum foil : 11-30umCopper foil : 8-30um |
| Mechanical tape speed | ≤5m/min, with accuracy ±0.1m/min |
| Coating speed | 0-750 mm / minute, adjustable |
| Coating thickness | 30-200um |
| Applicable slurry viscosity | 1500-15000cps |
| Coating roller accuracy | ≤1um |
| Coating accuracy | Double dry thickness accuracy error : <±4um |
| Single side dry thickness accuracy error : <±2um | |
| Double coated alignment error : <±0.5mm | |
| Average length of error : <±0.5mm | |
| Roller inner diameter | 3 inches |
| Tension control | Low friction tension system |
| Struggle to control precision | <±0.3mm |
| Oven temperature | Max150℃ adjustable, with accuracy ±1℃,Independent PID adjustable |
| Weight | 500kg |
| Dimensions(L*W*H) | 1100*650*650mm |
