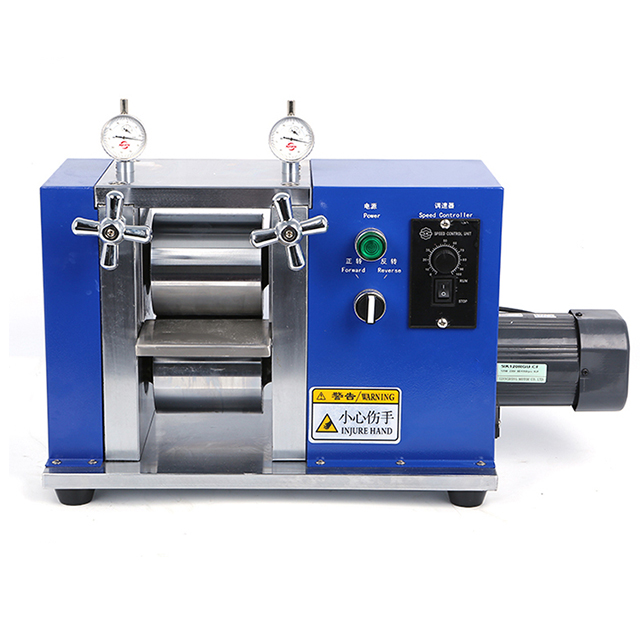

Home - Products - Battery R and D Equipment - 150mm Electric Roller Press Machine for Battery Electrode Calendering
This 150mm electric roller press machine is mainly used for rolling press of battery electrode sheet, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum
Technical Parameters
This 150mm electric roller press machine is mainly used for rolling press of battery electrode sheet, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum
Features :
1. Hard chrome plated on surface.Material HRC62.
2. Transparent protective plate is designed for safety operation .
3. Press gap is adjustable .
4. Rolling speed , press thickness is adjustable .
Technical Parameters:
| Model | KS-PCB-ERP150 |
| Item Name | battery material presser |
| Watt | 120W |
| Voltage | 220V |
| Roller material | HRC62 |
| Roller diameter | 96mm |
| Ra | >0.8um |
| Press gap | 0-2mm adjusted |
| Rolling width | 0-150mm adjusted |
| Rolling speed | 0~40mm/s adjusted |
| Size | L685mm*W255mm*H375mm |
| Weight | 75KG |
